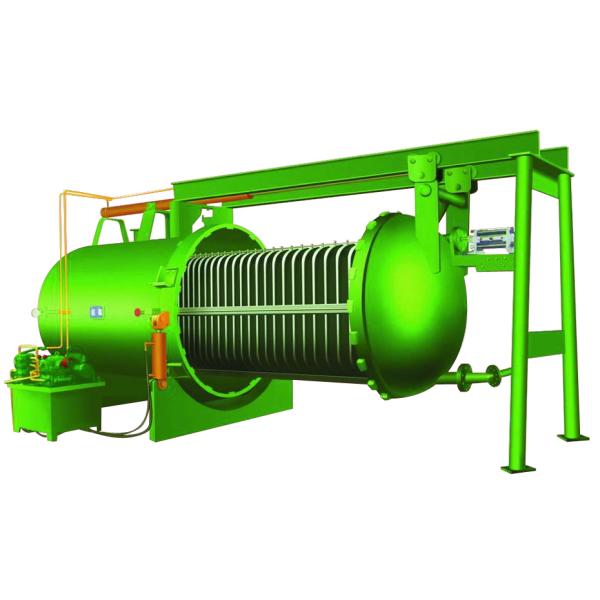

Fully Automatic Horizontal Pressure Leaf Filter With Hydraulic Control

Fully Automatic Horizontal Pressure Leaf Filter With Hydraulic Control​

Selection and application of diatomaceous earth, the filter aid

Diatomaceous earth is like powder, the major chemical composition is silicon dioxide, it has excellent chemical stability, shall not contaminate the liquid to be filtered. It can be applied in the filtration of any liquid except concentrated alkali. The sound diatomaceous earth as a filter aid can form solid grid structure filter cake with porosity rate up to 85~90% The filter cake of this structure can intercept the minute particle or colloid impurities over the grid frame, in general it can remove the impurity particles of 0.1~1 micron. The filter cake thus formed is basically not compactable, under certain pressure, it shall keep its porous status which is relatively loose, therefore a higher filtration speed can be maintained and meet the demand for filter

Horizontal Pressure Leaf Filter Characteristics

1. Fully closed filtration, no leakage, no environmental pollution.

2. Filtration pad automatically pull the structure, easy to work in the observation and cleaning.

3. Duplex filters, large filter area, large slag amount of capacity

4. Vibration slag, reduce labor intensity

5. Hydraulic control, operational automation

6. The machine can be made into large capacity, large filtration system

Horizontal Pressure Leaf Filter competitive advantage:

1, Filtering gauze flakes can be pulled out automatically, and easy to be inspected and cleaned.

2, As the leaves filtering on both sides, large filtration area and solids holding capacity can be obtained.

3, Automatically residue discharging by which labor can be largely reduced.

4, Controlled by hydraulic thus automation is to be.

5, A large filtration area and large solids holding capacity can be obtained .

Therefore the real filtration is realized through the cake layer. In case that the filter cake over the surface of filter screen reaches certain thickness, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake,

and clean the filter screen the discharge , the vibration dreg discharging device shall be switched on, the dregs shall be unloaded because of weight and vibration. As to sticky filter cake, manual help shall be provided to clean up the dregs.

Horizontal Plate Type Filter Application:

Food industry : Syrups, edible oils, dewaxing , decolour, degrease

Introduction of Company:

Juneng Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc.

This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.

Technonlgical Parameters:

plate type filter

horizontal plate filter
